Bar POC Indicator

Bar POC Indicator

Bar POC Indicator

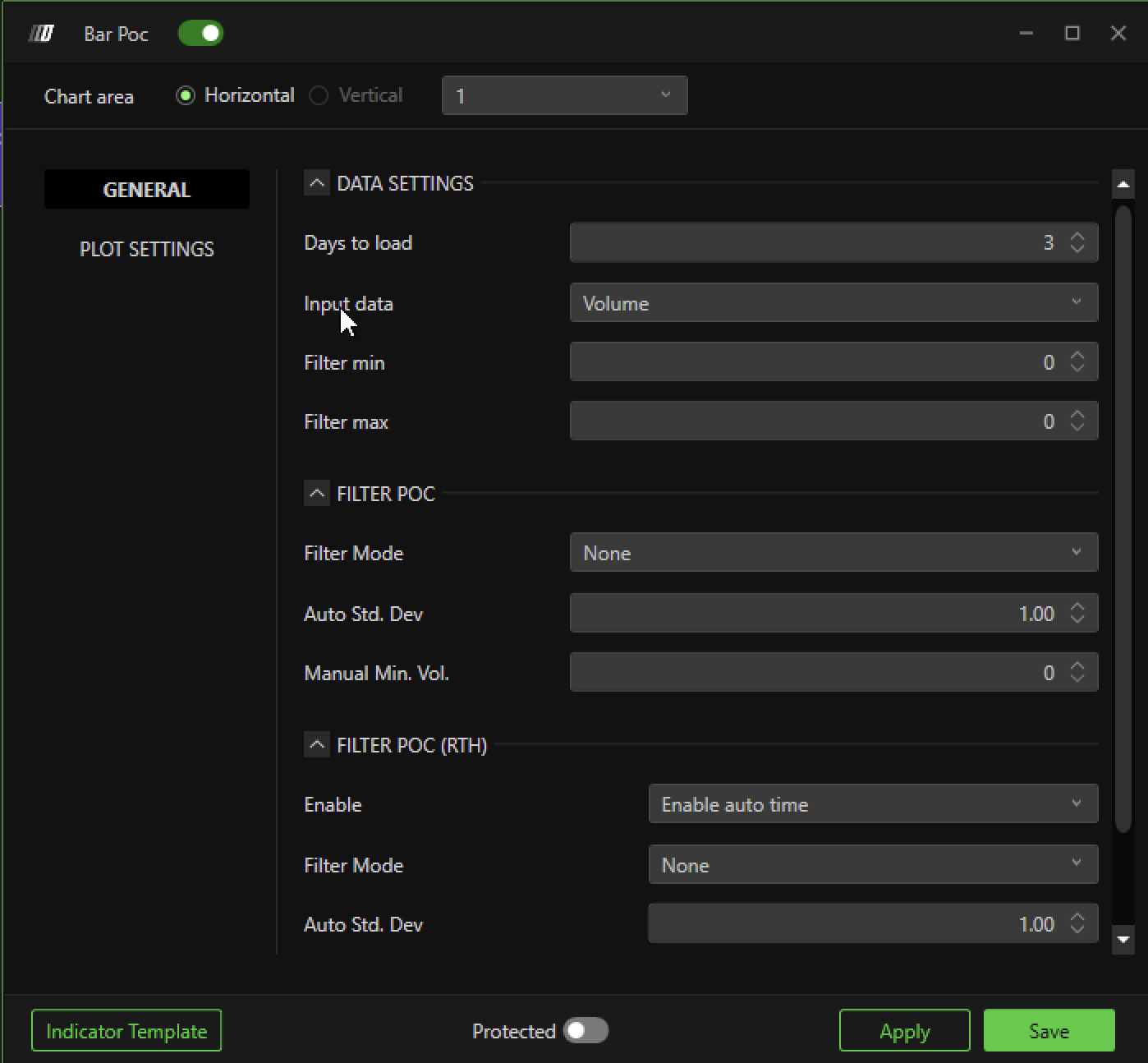

General

Days to Load

Defines the number of historical days loaded for the indicator.

Input Data

Read the different Input Data types here ( Input Data for Indicators )

Min/Max Filter

By customizing these fields you can filter orders included in the indicators on base of contract size of orders.

Filter Mode

1. None

No filter is applied.

2. Manual

Applies a user-defined manual filter.

3. Auto

Applies an automatic filter using the platform’s internal algorithms to highlight the most relevant POCs.

Auto Std. Dev.

Defines the standard deviation used by the automatic filter.

Manual Min. Vol.

Defines the minimum volume required for a POC when using manual filtering.

You can also Customize the settings for RTH

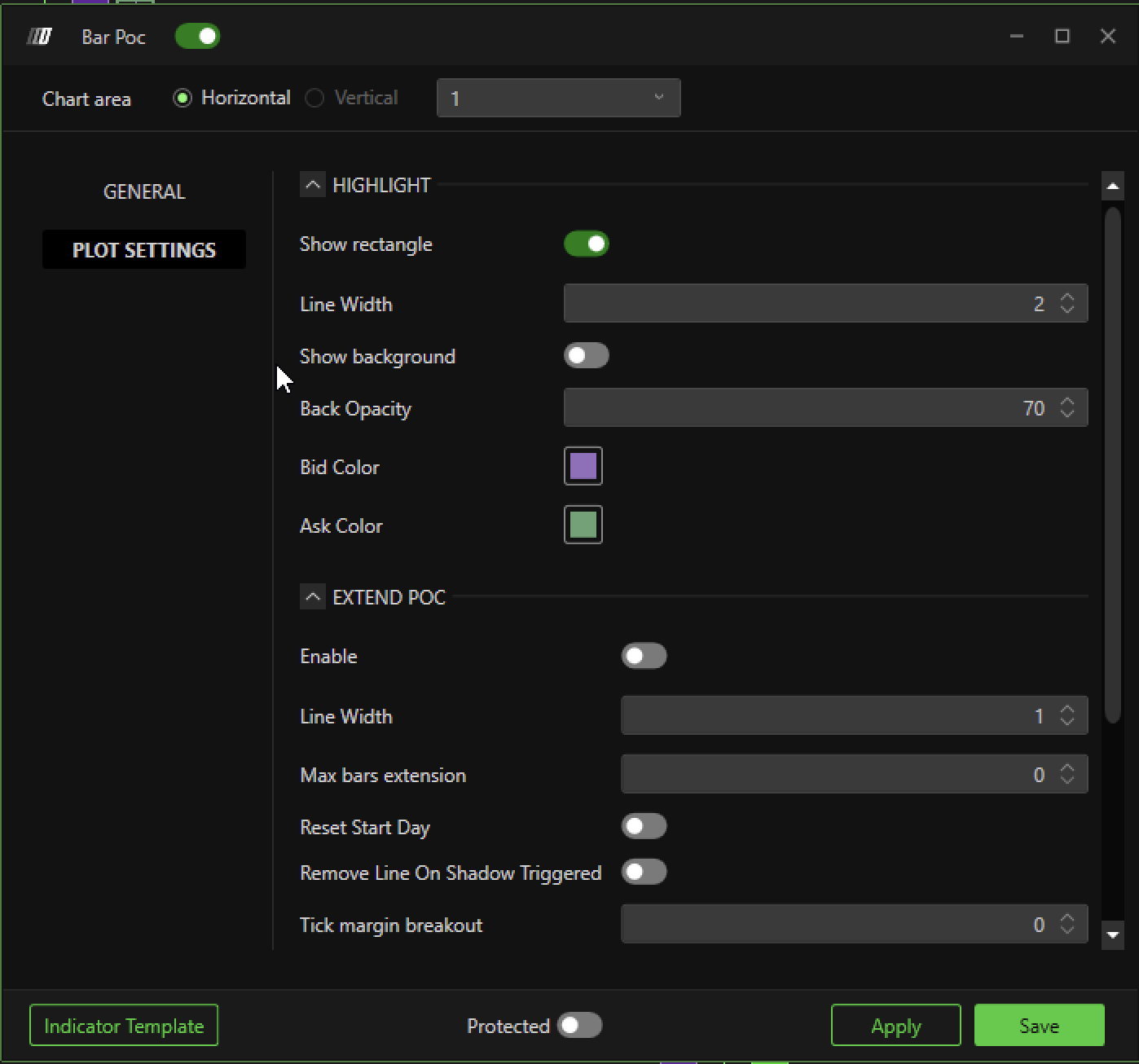

Plot Settings

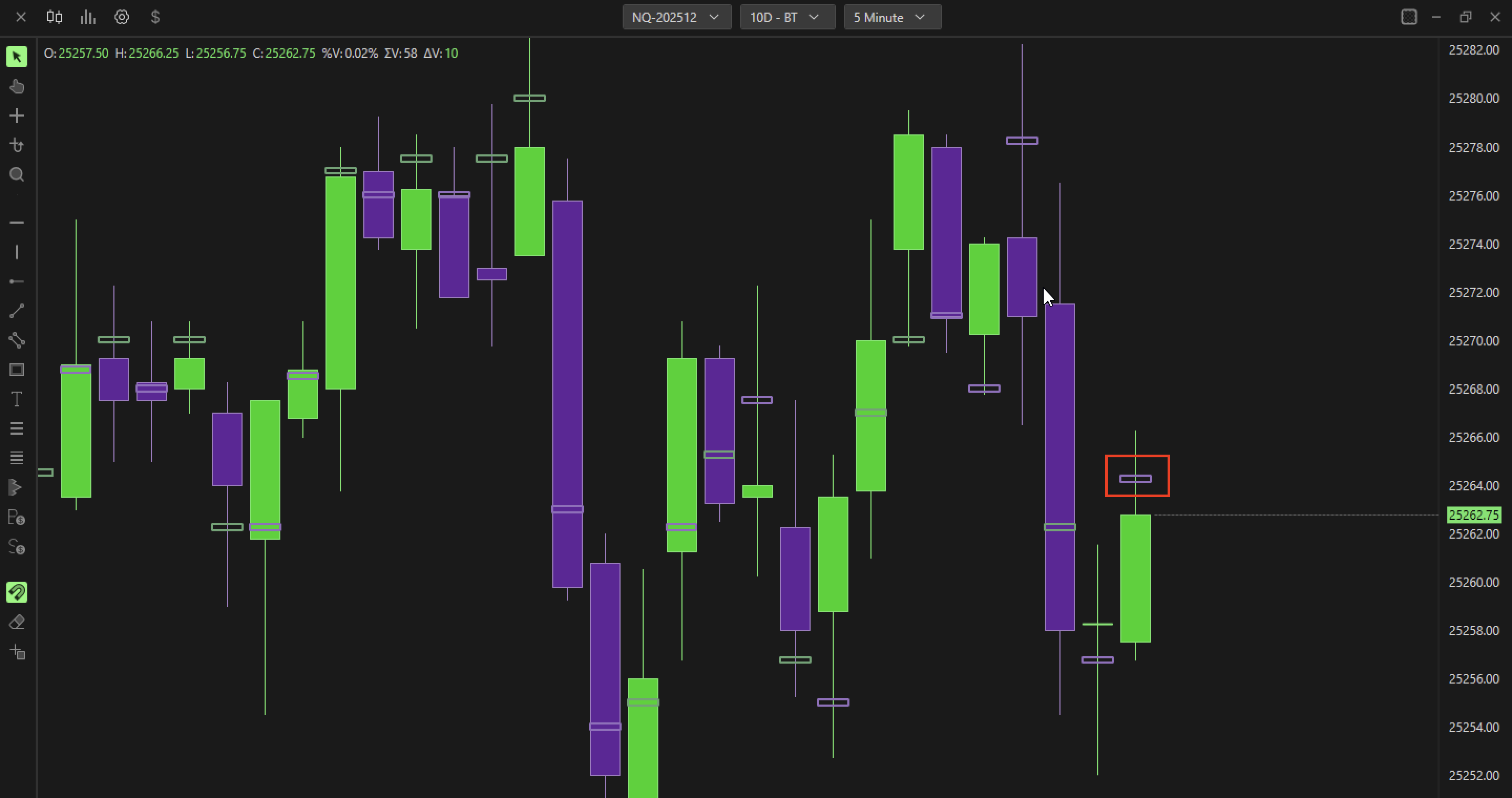

HighLight

  1. Show Rectangle: This is the button to enable/disable the rectangle that highlight the area of POC.
  2. Line Width: Defines the line width of the  rectangle.
  3. Show Background: This is the button to enable/disable the background color of the rectangle.
  4. Back Opacity: Defines the opacity of the background color of rectangle.
  5. Bid/Ask Color: These color defines the color of the rectangle based on the Sell/Buy aggression in POC area.

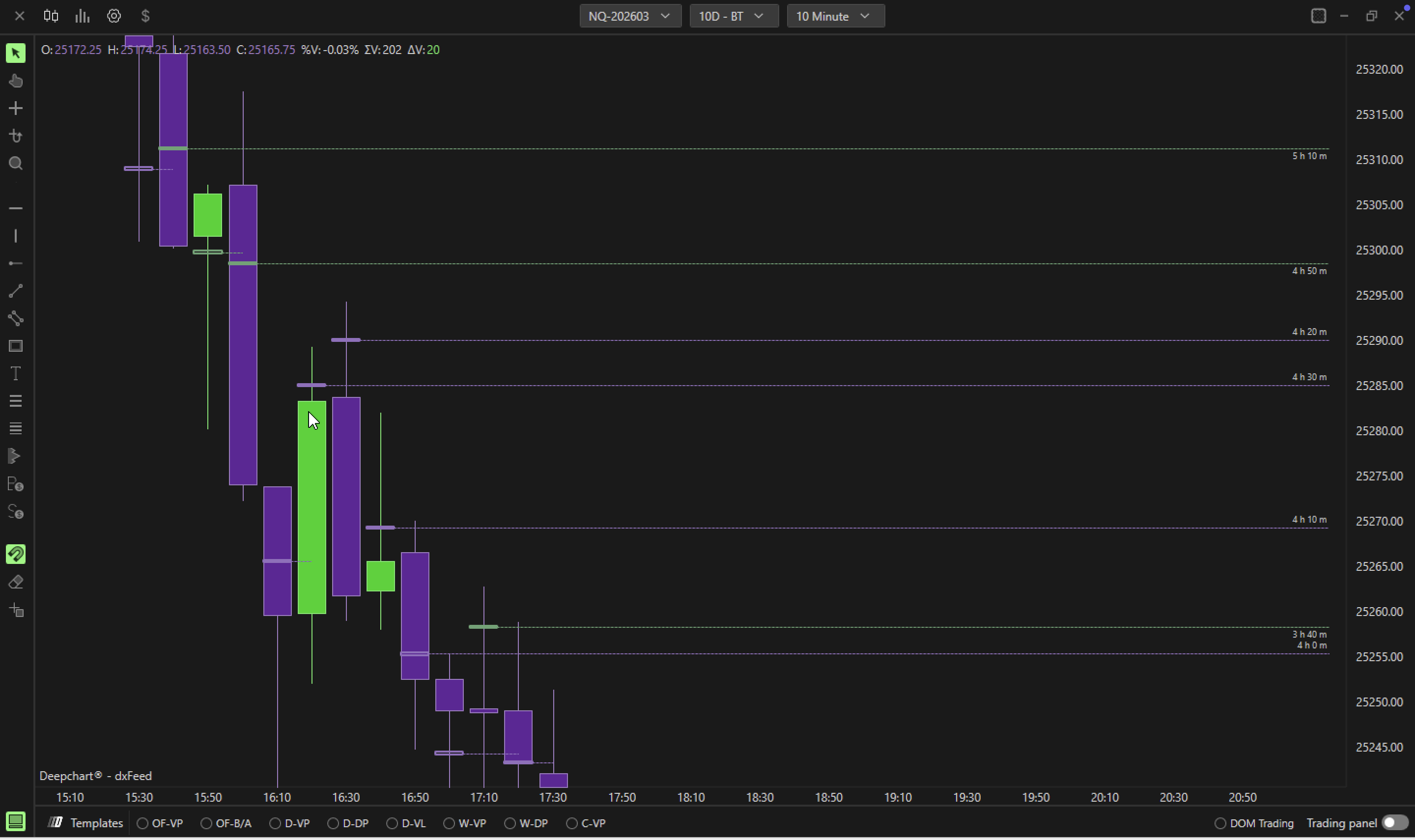

Extended POC

  1. Enable: This button Enable/Disable a line form the POC area of the candle to the right end of the chart.
  2. Line Width: Define the width of the extended line
  3. Max Bar Extension: Defines the maximum number of bars to which you want to extend the lines, if you leave the value 0 the lines are extended to the right end of the chart.
  4. Reset Start Day: If enabled it extends only the current day's POCs.
  5. Remove Line On Shadow Triggered: If enabled it stops the extension of POCs at the first touch of the price, while if not enabled the extension stops only when the price closes beyond that line.
  6. Tick Margin Breakout: Defines the minimum number of ticks for which a breakout is considered in the case of price closing above that line

Duration on Extension

  1. Enable: If enabled it shows duration (Days, Hours, Minutes) of the POC extension.
  2. Text Size: Define the size of the text of extension timer.
  3. Text Color: Define the color of the text of extension timer.
