FVG Identifier

FVG Identifier

FVG Identifier

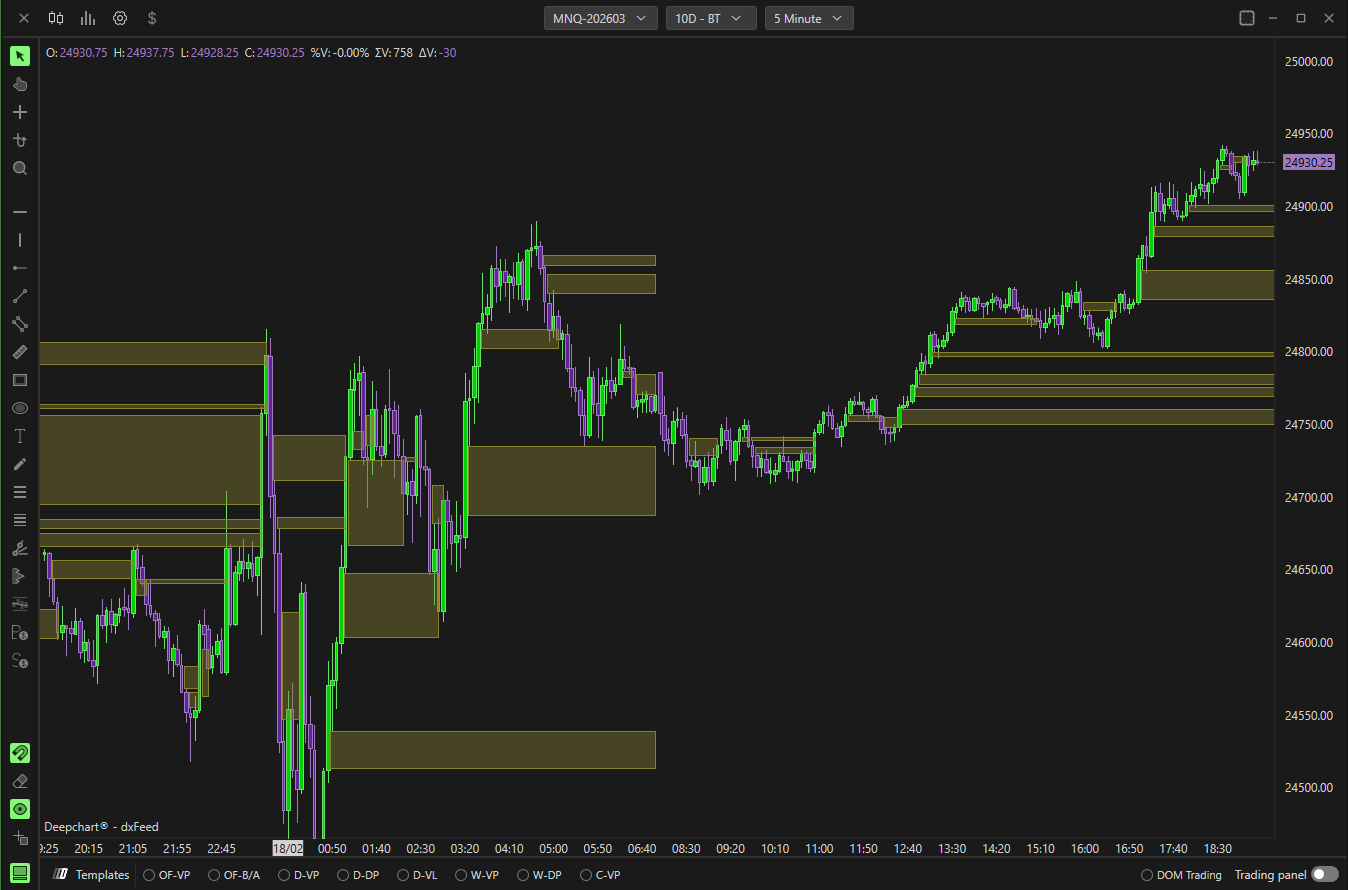

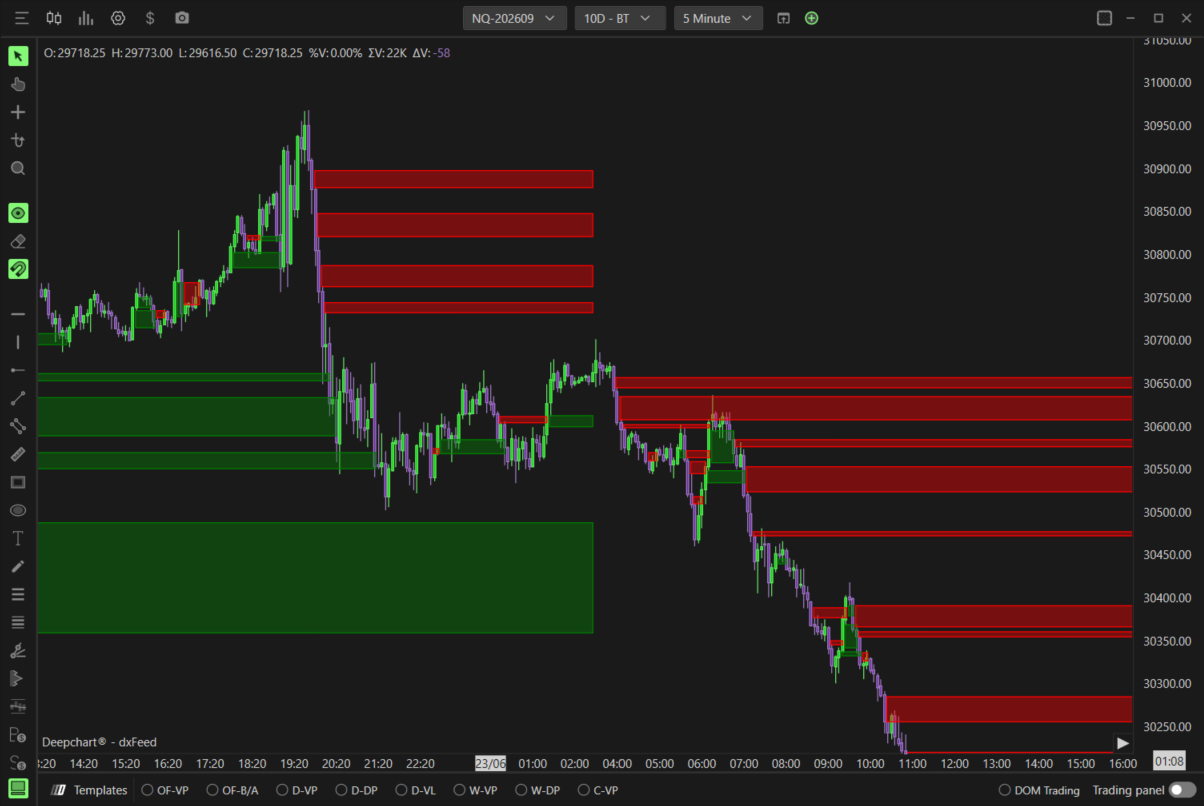

The FVG Identifier automatically detects and highlights Fair Value Gaps (FVGs) on the chart.

A Fair Value Gap forms when price moves aggressively, leaving an imbalance between candles.
These areas often act as future reaction or mitigation zones.


Settings

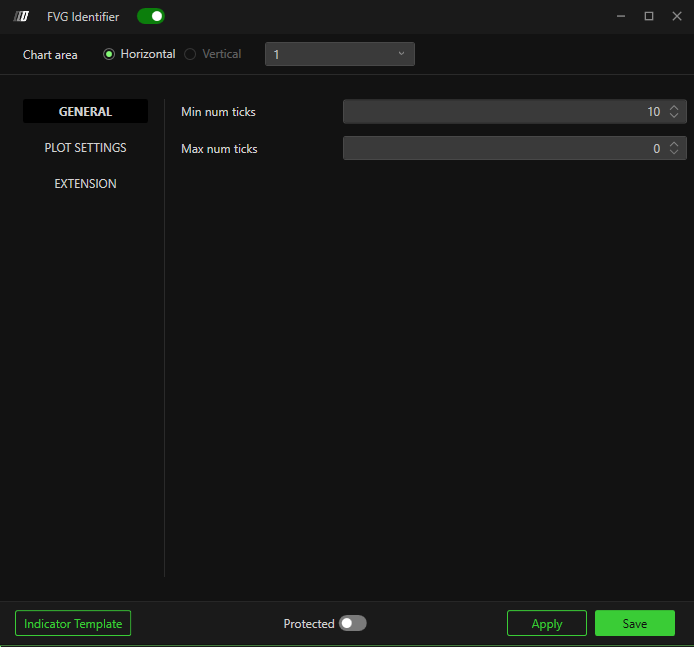

General


Min num ticks

Defines the minimum size (in ticks) required for a gap to be considered a valid FVG.
Smaller values detect more gaps. Larger values filter out minor imbalances.

Max num ticks

Sets the maximum gap size allowed to qualify as an FVG.
Use this to filter out excessively large moves.

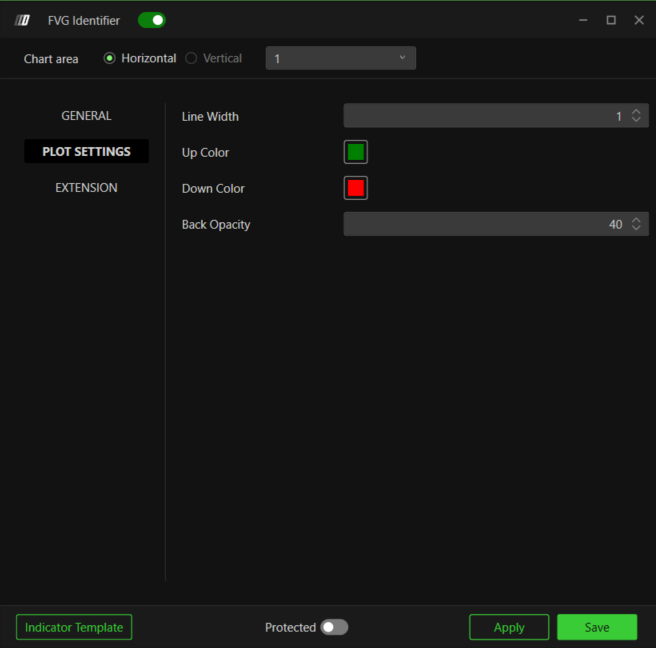

Plot Settings


Line Width

Controls the thickness of the FVG zone borders.

Color

Sets the color of the highlighted FVG area.

Back Opacity

Adjusts the transparency of the FVG zone background.
Higher values = more solid. Lower values = more transparent.

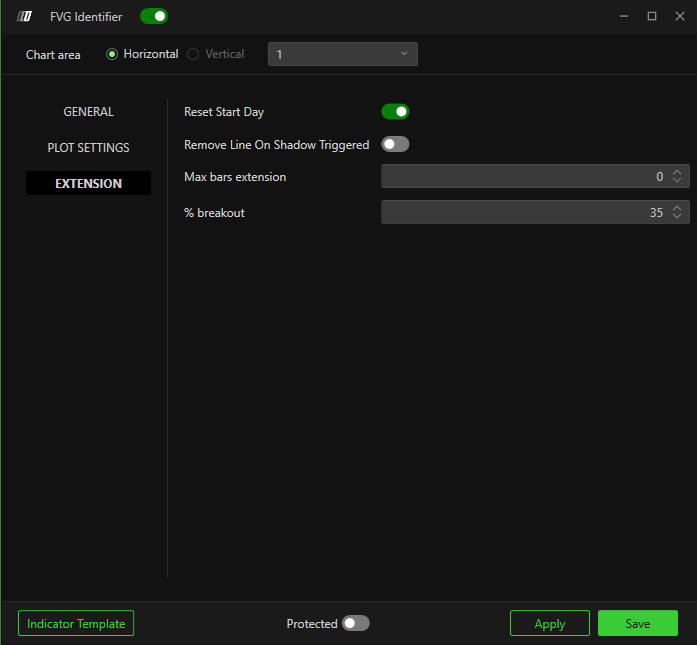

Extension


Reset Start Day

Resets FVG tracking at the start of each new trading day.

Remove Line On Shadow Triggered

Removes the FVG zone if price wicks into it (instead of requiring a full body close).

Max bars extension

Limits how many bars the FVG zone extends forward.
0 = extend indefinitely.

% breakout

Defines how much of the gap must be filled (in percentage terms) to consider it mitigated or broken.
