Diagnostic Report – DeepCharts

If you are experiencing performance issues, delays, or connectivity problems on DeepCharts, running a diagnostic report and checking your RAM usage helps our support team identify and resolve the issue faster.

1. Checking RAM Usage

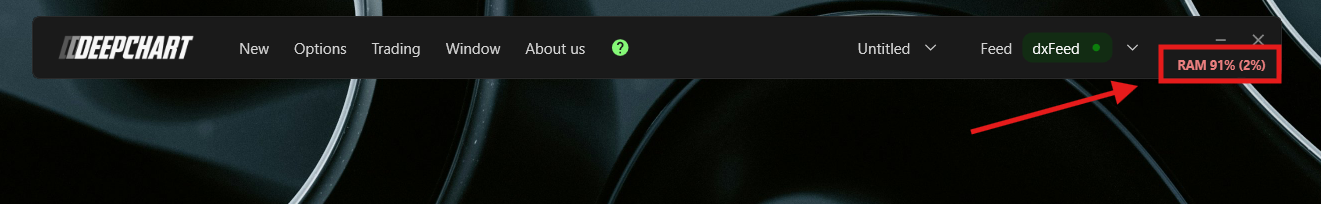

At the top right of the DeepCharts toolbar, you will see a RAM indicator showing your current memory usage.

• The first value (e.g. 88%) shows your total system RAM usage
• The value in brackets (e.g. 2%) shows DeepCharts' own memory usage



This gives you a quick overview of how your system resources are being used while the platform is running.

If your total RAM usage is consistently high, it may affect platform performance. Consider closing other applications to free up memory.

2. Running the Diagnostic Report

The Diagnostic Report collects key information about your system and network connection. This helps our support team diagnose issues without needing to guess what is happening on your end.

Steps:

1. In the DeepCharts toolbar, click the ? (Question Mark) icon
2. Select Contact Support
3. When prompted, select "I have a problem or delay with the platform"

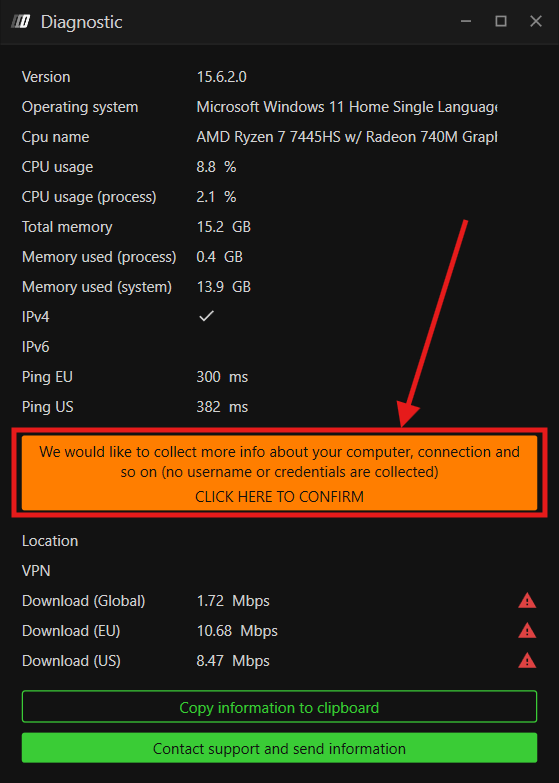

4. The Diagnostic window will open showing:
   • DeepCharts version
   • Operating system
   • CPU name and usage
   • Total memory and memory used
   • Network connectivity (IPv4/IPv6)
   • Ping to EU and US servers
   • Download speeds (Global, EU, US)
5. Click "Click Here to Confirm" to allow the platform to collect additional connection and system information



No username or credentials are collected during this process.

6. Once the diagnostic is complete, click Contact Support and Send Information to share it directly with our support team



3. Log Files

Log files contain a detailed record of everything happening on your platform. If you are experiencing a recurring issue, keeping your log files ready allows our team to investigate and identify the root cause accurately.

Location:

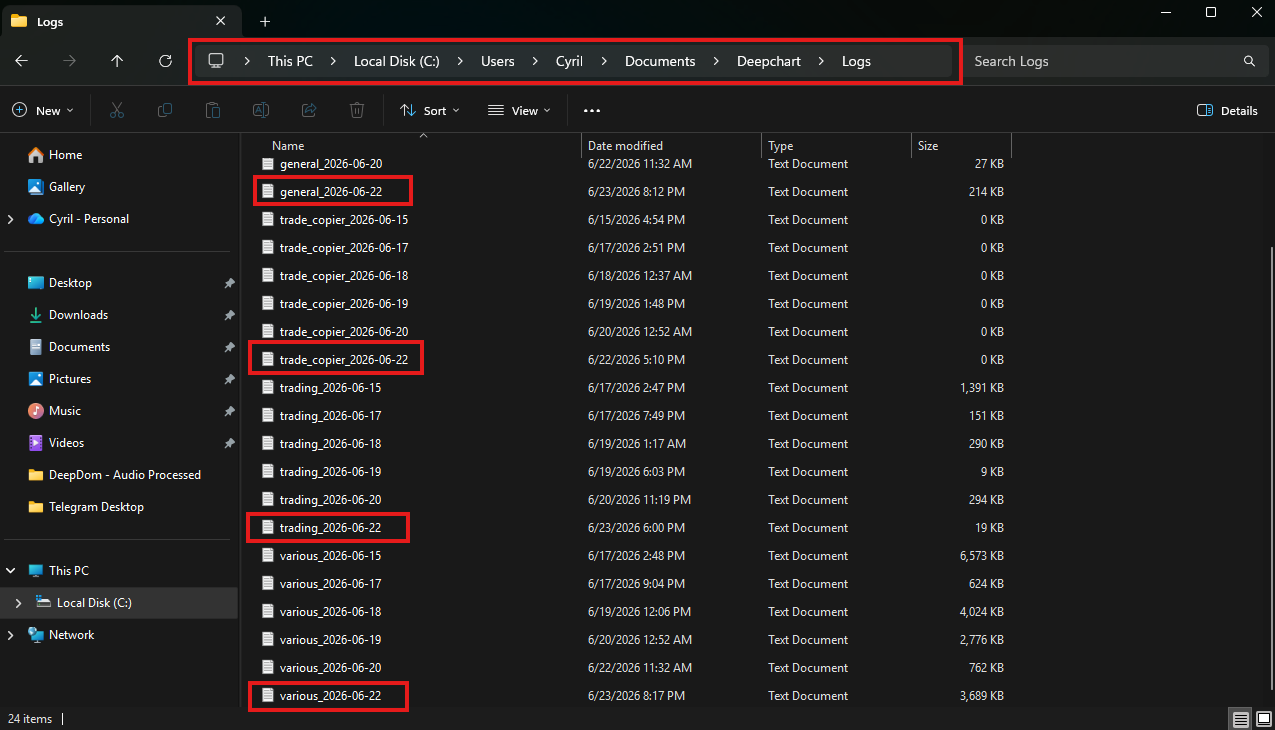

Go to My PC >> Documents >> DeepCharts >> Logs

Note: In some cases, DeepCharts may be saved in OneDrive instead of the default Documents folder, which means the file path may be different. If you are having trouble locating your log files, please reach out to our live support team at www.deepcharts.com and they will assist you in finding and collecting the correct files.

You will find four types of log files, each covering a different area of the platform:

• General - Overall platform activity
• Trade Copier - Trade Copier related activity
• Trading - Trading activity and order execution
• Various - Other platform activity


Still Having Trouble?

Our support team is available 24/7 and ready to help you with any issue you encounter.

When reaching out, please include:

• A screenshot of the issue
• A brief description of what you were trying to do

Support Ticket (Fastest Response) Visit www.deepcharts.com and create a support ticket directly on our website.

Email Support Reach us at support@deepcharts.com - please note that email responses may take a little longer than a support ticket.
