Momentum Indicator

Momentum Indicator

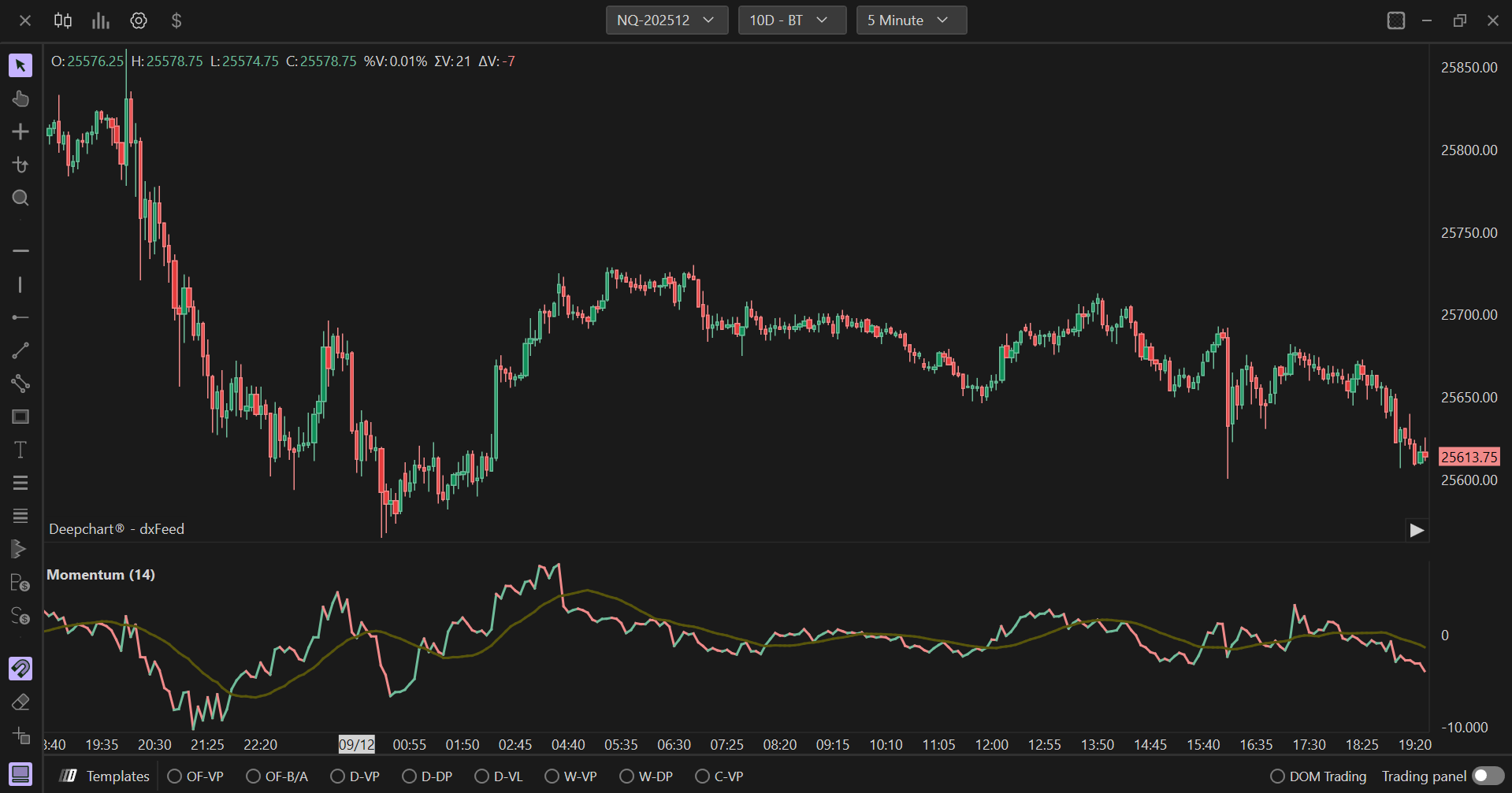

The Momentum indicator is a technical analysis indicator that measures the speed or pace of an asset's price movements. The main objective is to assess how fast a price is changing from a previous period, providing information about the strength of a trend and signaling potential reversals. Momentum is particularly useful for identifying the acceleration or deceleration phases of a trend.


Using Settings

Clicking on the indicator settings icon will open its configuration window, within which you can make several choices regarding the indicator's functionality.

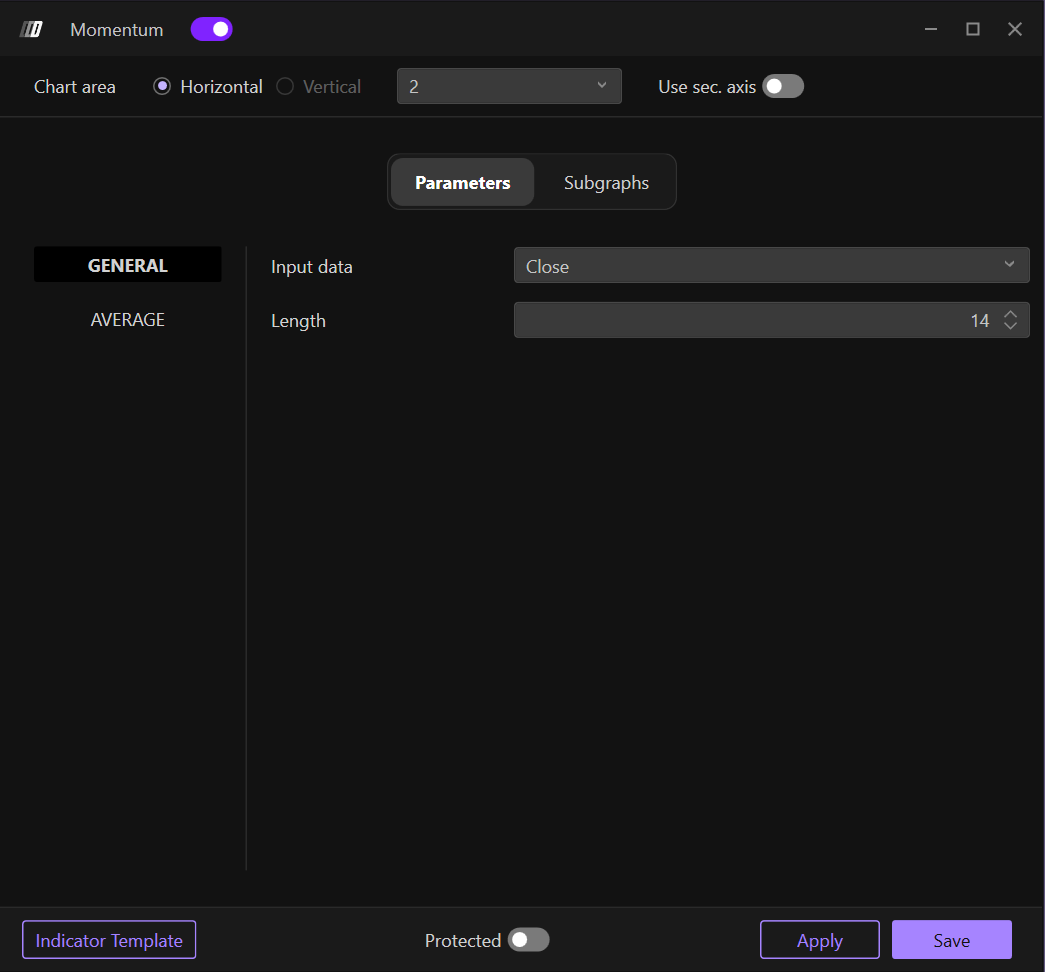

Parameters


The Parameters section is divided into two sub-sections:

General

Where you can change:

  • Input Data: The price data to use for calculation (Close, Open, High, Low and Volume)
  • Length: The number of periods for momentum calculation (default: 14 periods)

Average

Where you can:

  • Enable: Toggle the average line on or off
  • Average Type: Choose the type of averaging (Simple, Exponential, Triangular and Weighted)
  • Periods: Set the number of periods for the average calculation (default: 20 periods)

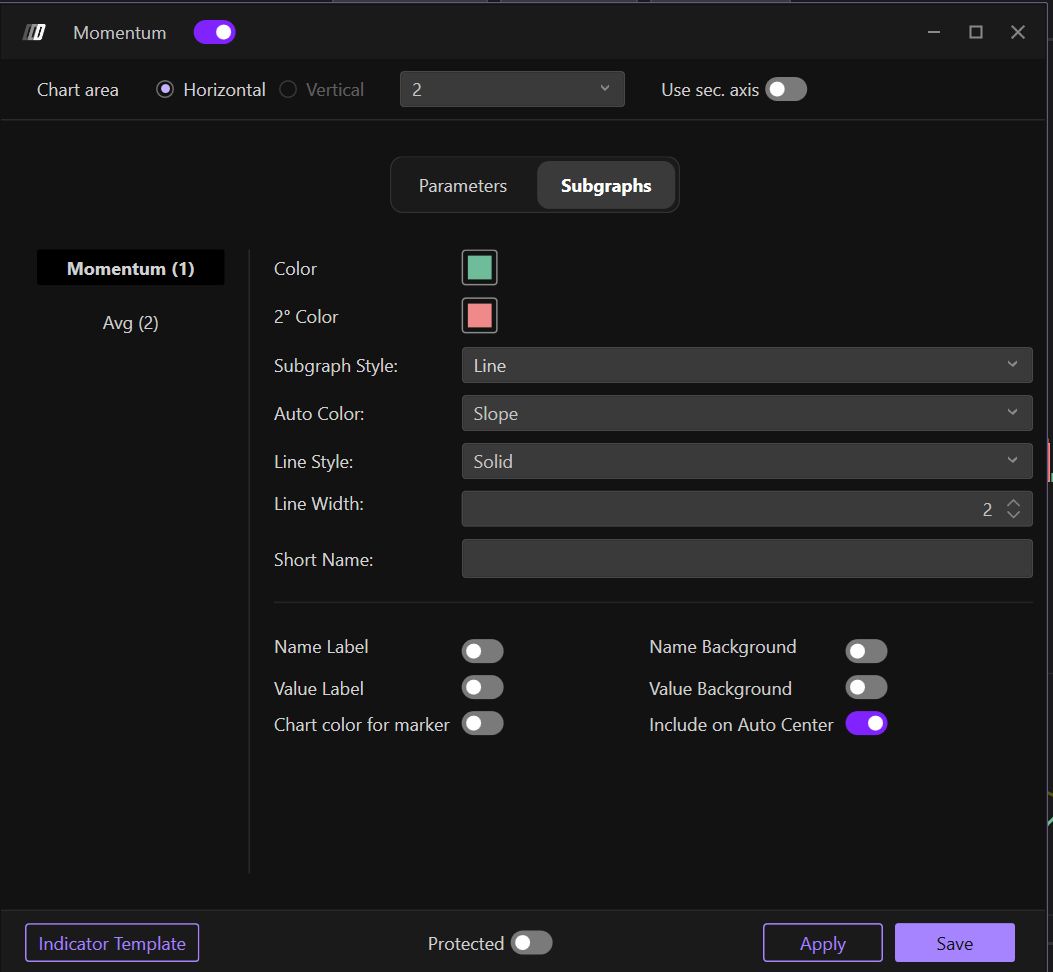

Subgraphs


In the Subgraph section you can change colors and style of the indicator and its reference average:

  • Momentum Color: Set the color of the momentum line
  • Average Color: Set the color of the average line
  • Secondary Color: Set an optional secondary color
  • Subgraph Style: Choose the display style
  • Line Style: Define the line style
  • Line Width: Define the width of the lines
  • Use Secondary Axis: Option to display on a secondary axis
